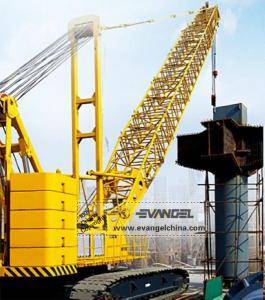

QUY220 Crawler Crane
Parameter
|
|
|
|
|
|---|---|---|---|
|
Max. lifting capacity |
Boom |
t |
220 |
|
Fixed jib |
t |
35 |
|
|
Tower jib |
t |
52 |
|
|
Max. lifting moment |
kN.m |
13000 |
|
|
Boom length |
|||
|
Boom |
m |
18-87 |
|
| Fixed jib | m | 12-36 | |
|
Tower jib |
m |
27-57 |
|
|
Boom elevating angle |
° |
-3-82.8 |
|
|
Winch single line hoisting speed(with no load,at 6th layer ) |
m/min |
120 |
|
|
Boom max. single line elevating speed(at 1st layer) |
m/min |
23.8 |
|
| Tower attachment single line elevating speed(at 1st layer) | m/min | 41.8 | |
|
Max. swing speed |
r/min |
1.22 |
|
|
Max. travel speed |
km/h |
1.0 |
|
|
Grade-ability |
|
30% |
|
|
Mean ground pressure |
MPa |
0.105 |
|
|
Engine output |
KW |
242 |
|
|
Total mass (with main hook block,18m boom) |
t |
230 |
|
|
Max. weight of single part in transport state |
t |
55 |
|
|
Dimension of single part(turntable) in transport state(L×W×H) |
m |
12.02×3.4×3.4 |
|
