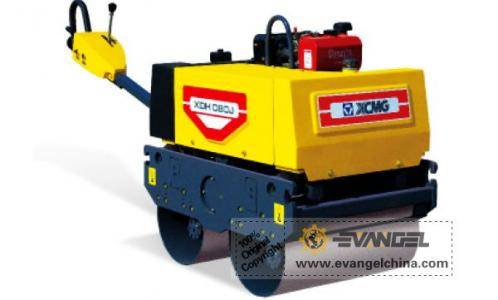

XDH080J Light compaction equipment
Feature
XDH080J walking type vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.
Changfa vertical wind cooling diesel engine, electrical starting type. With full hydraulic double drum drive, the handrail is equipped with travel control lever, throttle control lever, vibration switch, power switch, and safety device for reverse.
The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.
Parameter
| Description | Unit | XDH080J |
|---|---|---|
| Operating weight | kg | 800 |
| Roller diameter | mm | 400 |
| Roller width | mm | 708 |
| Rolling system | Tandem type both drum drive | |
| Power line | Hydraulic transmission | |
| Final drive | Gear | |
| Brake system | Hydraulic, mechanical pin lock | |
| Speed | km/h | 0-3.6 |
| Gradeability | % | 35 |
| Centrifugal force | kN | 15.8 |
| Frequency | Hz | 55 |
| Engine model | CF186FE | |
| Rated speed | r/min | 2600 |
| Rated power | kw | 5 |
| Fuel tank capacity | L | 5.5 |
| Hydraulic tank capacity | L | 16 |
| Sprinkler capacity | L | 40 |
| Overall Dimensions（L/W/H） | mm | 2690×756×1108 |
| Transport Dimension（L/W/H） | mm | 1337×756×1976 |
All technical parameters are subject to change without prior notice because of technical improvements.
