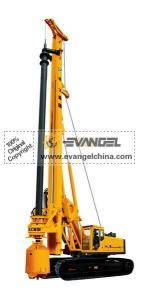

XR360 |
||
|
Wall depth |
60m |
|
|
Wall thickness |
600-1200mm |
|
|
Max. hoisting power |
360KN |
|
|
Max. hoisting/lowering speed |
35m/min |
|
|
Grab opening time |
6sec |
|
|
Grab closing time |
7sec |
|
|
Hydraulic system pressure |
30Mpa |
|
|
Engine |
||
|
Model |
CUMMINSQSL9-C325 |
|
|
Rated power |
242/2100KW/rpm |
|
|
Undercarrige |
||
|
Max. traveling speed |
1.5Km/h |
|
|
Max. grade ability |
40% |
|
|
Min. ground clearance |
468mm |
|
|
Track shoe width |
800mm |
|
|
Track gauge |
3500～4400mm |
|
|
Dimension(length,width,height) |
||
|
Working condition |
10200x4400x17097mm |
|
|
Transportation condition |
12850x3500x3395mm |
|
|
Overall Drilling weight(without grab) |
58T |
|
