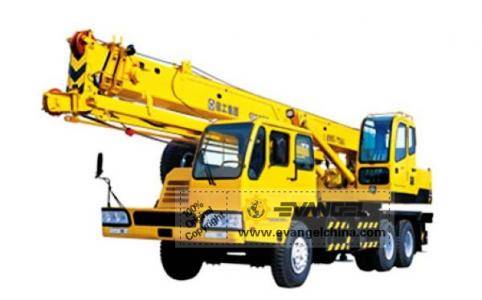

QY16C Truck Crane
|
Classificatory |
Item |
Unit |
Parameter |
|
|
Engine |
Model |
|
D6114 |
|
|
Outline dimension |
Overall length |
mm |
11990 |
|
|
Overall width |
mm |
2500 |
||
|
Overall height |
mm |
3350 |
||
|
Wheel base |
Axle 1, Axle 2 |
mm |
4025 |
|
|
Axle 2, Axle 3 |
mm |
1350 |
||
|
Mass |
Total mass in travel state |
kg |
22900 |
|
|
Axle load |
Axle 1 |
kg |
5240 |
|
|
Axle 2 |
kg |
17660 |
||
|
Travel performance |
Travel speed |
Max. travel speed |
km/h |
70 |
|
Min. stable travel speed |
km/h |
4 |
||
|
Turning diameter |
Min. turning diameter |
m |
20 |
|
|
Min. turning diameter at boom tip |
m |
23 |
||
|
Min. ground clearance |
mm |
270 |
||
|
Approach angle |
(°) |
21 |
||
|
Departure angle |
(°) |
10 |
||
|
Braking distance (at 30km/h with full load) |
m |
9.5 |
||
|
Max. grade-ability |
％ |
24 |
||
|
Fuel consumption for 100km |
L |
35 |
||
|
Power |
Engine rated output |
kW/(r/min) |
158/2200 |
|
|
Engine rated torque |
N.m/ (r/min) |
790/1400 |
||
|
Engine rated speed |
r/min |
2200 |
||
Main Technical Data for Lifting Operation
|
Classificatory |
Item |
Unit |
Parameter |
|||
|
Lifting performance |
Max. total rated lifting capacity |
t |
16 |
|||
|
Min. rated working radius |
m |
3 |
||||
|
Turning radius at turntable tail |
m |
≤3.12 |
||||
|
Max. load moment |
Base boom |
kN.m |
711 |
|||
|
Fully extended boom |
kN.m |
449 |
||||
|
Fully extended boom + Jib |
kN.m |
186 |
||||
|
Outrigger span |
Longitudinal |
m |
4.6 |
|||
|
Lateral |
m |
5.4 |
||||
|
Lifting height |
Base boom |
m |
≥9.9 |
|||
|
Fully extended boom |
m |
≥23.6 |
||||
|
Fully extended boom + Jib |
m |
≥30.8 |
||||
|
Working speed |
Boom raising time |
s |
≤60 |
|||
|
Boom full extension time |
s |
≤75 |
||||
|
Max. swing speed |
r/min |
≥2.5 |
||||
|
Hoist speed (single line) |
Main winch |
Full load |
m/min |
≥54 |
||
|
No load |
m/min |
≥100 |
||||
|
Aux. winch |
Full load |
m/min |
≥54 |
|||
|
No load |
m/min |
≥100 |
||||
|
Noise limit |
Crane exterior noise |
dB (A) |
≤118 |
|||
|
At seated position |
dB (A) |
≤90 |
||||
