electro-hydraulic proportional control, load sensing control, and etc.•The automatic loading and unloading device of
drill pipe can improve work efficiency,
eliminate work intensity and manually misoperation, reduce the necessary quantity of
workers and thus reduce the construction cost.•Automatic anchoring: hydraulic drive controls the thrusting and
pullback of anchor pole.
The fasten force of the anchor is very large and the operation is very simple and convenient.•Dual speed driving
head: drilling and pullback at low speed which ensures smooth
operation; when disassembling the drill pipe and work with empty load, it can slide
at a high speed.•The auxiliary time is reduced, and the work efficiency is higher.•The engine has the torque
enlarging function through turbo, so that it can boost power
instantaneously and guarantees the drilling power.

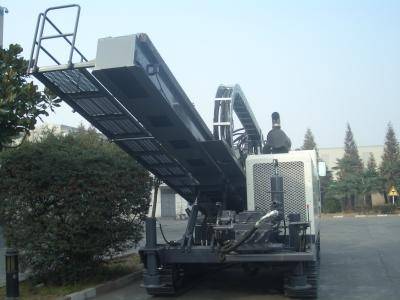

XCMG Horizontal Directional Drill (XZ680)
Rated engine power(KW/r/min): 246kw/2300rpm
CE Certification
On Sale
|
Model |
|
XZ680 |
|
Engine |
|
CUMMINS |
|
Rated power |
kW |
246 |
|
Max.pullback/thrusting |
kN |
650/650 |
|
Spindle torque (max) |
N.m |
26000 |
|
Spindle speed |
r/min |
0-100 |
|
Backreaming diameter |
mm |
Ø1000 |
|
Tubing length(single) |
m |
6 |
|
Tubing diameter |
mm |
Ø102 |
|
Entry angle |
° |
10-18 |
|
Mud flow rate (max) |
L/min |
600 |
|
Mud pressure (max) |
bar |
100 |
|
Overall weight |
kg |
25000 |
|
Dimension(LxWxH) |
mm |
11000×2800×3300 |
